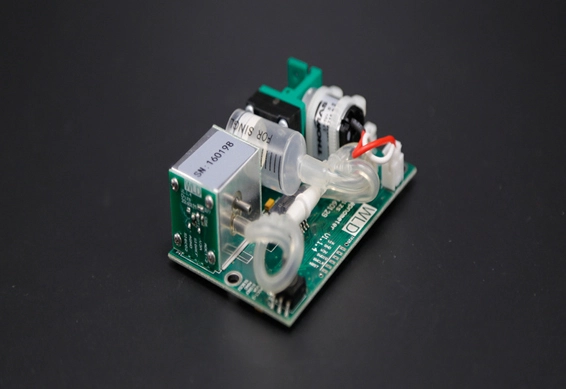

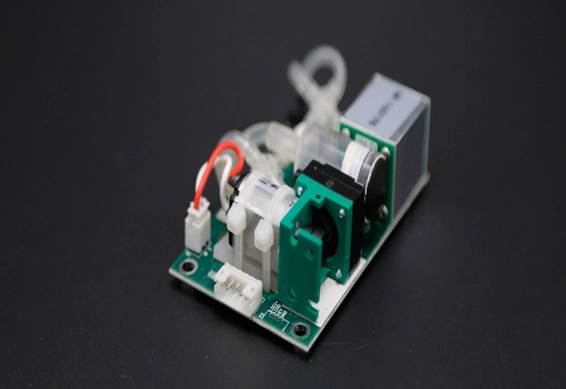

Internal Sidestream Capnography Sensor

Complete model: Compatible with equipment from many well-known manufacturers around the world, with wide compatibility;
Using imported electronic components: It has the advantages of accurate numerical value and stable waveform;
Complete accessories and consumables: Meet all EtCO2 needs and provide EtCO2 overall solutions;

Get Price

Specification Details

Specification of Internal Sidestream Capnography Sensor

Project	Parameter Description
Principle of Operation	Non-dispersive infrared(NDIR) single beam optics, dual wavelength, no moving parts.
Initialization Time	Capnogram displayed in less than 3 seconds，full specifications within 3 minutes(At 25°C)
CO2 Measurement Range	0 - 114 mmHg; 0 - 15 %; 0 - 15.2 kPa
CO2 Rise Time	Rise Time Less than 80 ms
CO2 Resolution	0.1mmHg 0 to 38 mmHg.
CO2 Resolution	0.25 mmHg 39 to 114mmHg.
CO2 Accuracy	0 - 40mmHg ±2 mmHg.
	41 - 76mmHg ±5% of reading.
	77 - 114 mmHg ±8% of reading.
	Above 80 breaths per minute ±12% of reading.
	* Note: Gas temperature at 25°C.
CO2 Stability	Short term drift: Drift over four hours shall not exceed 1 mmHg maximum.
CO2 Stability	Long term drift: Accuracy specification will be maintained over a 120-hour period.
Sampling Frequency	100Hz.
Respiration Rate Range	3 to 150 breaths per minute.
Respiration Rate Accuracy	±1 breath.
Temperature	Operating: 0 to 40°C; Storage: -40 to 70°C; Transport: -40 to 70°C.
Humidity	Operating: 10 to 90% RH, non-condensing; Storage: 10 to 90% RH, non-condensing. Transport: 10 to 90% RH, non-condensing.
Atmospheric Pressure	Operating: 400-800 mmHg; Storage: 400-800 mmHg; Transport: 400-800 mmHg.
Water Resistance	IPX4 - Splash-proof - Sensor only.
Size	Form: 71.3mm*45.5mm
	PCB board thickness: 1.6mm
	Maximum height of front-facing components: 19mm
	Maximum height of components on the back: 2.5mm
	Locating hole size: Ф6.5mm
Voltage Requirements	5VDC ± 5 %; Ripple not to exceed 100.0 mV
Power Rating	<1.2W Typical; <2.0 W Warm-up

Details of Internal Sidestream EtCO2 Sensor

Quick Details of Internal Sidestream Capnography Sensor

It can be internally installed in monitors and ventilators with carbon dioxide functions to accurately and swiftly collect end-tidal carbon dioxide values and generate visual curves. Both reusable and disposable product consumables are available.
