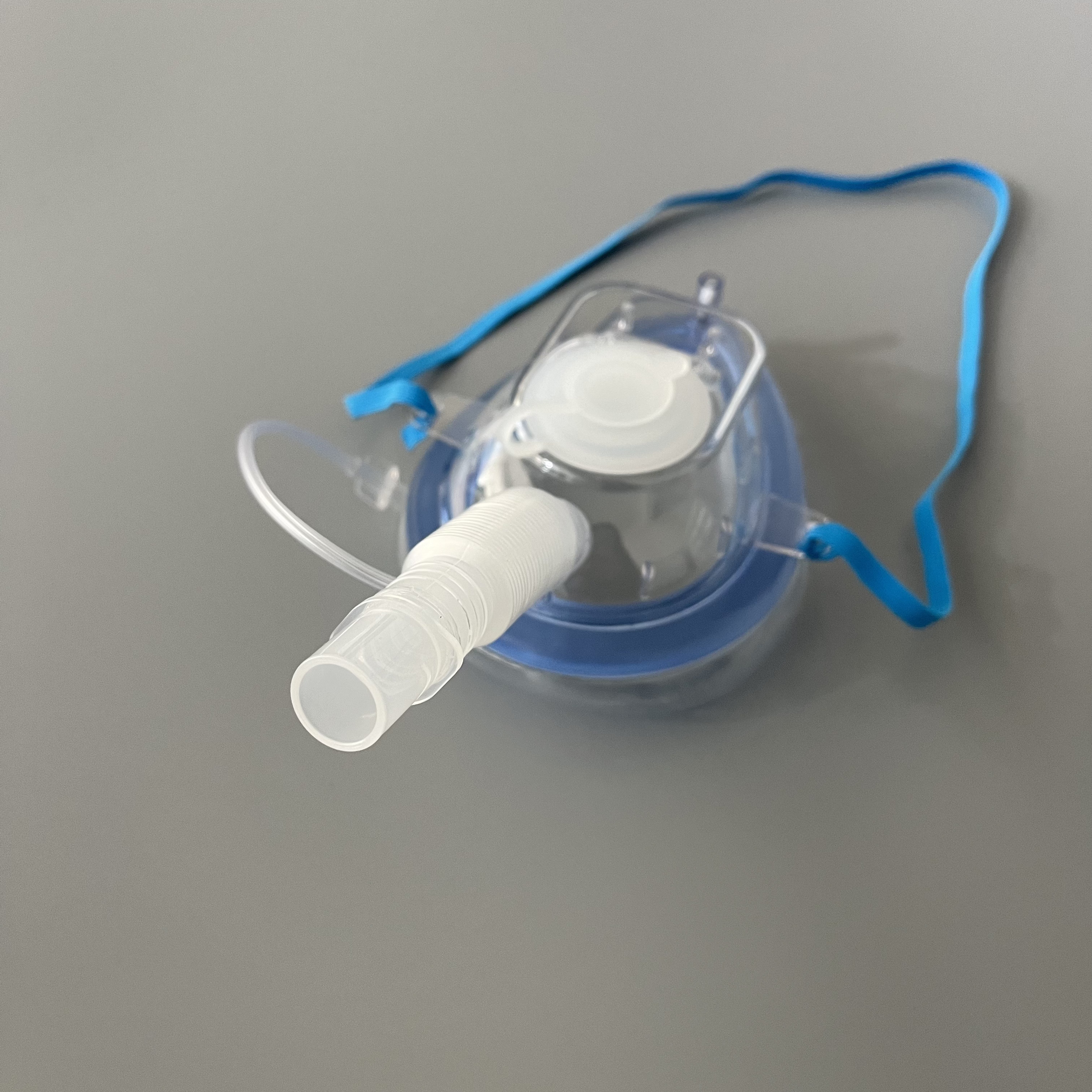

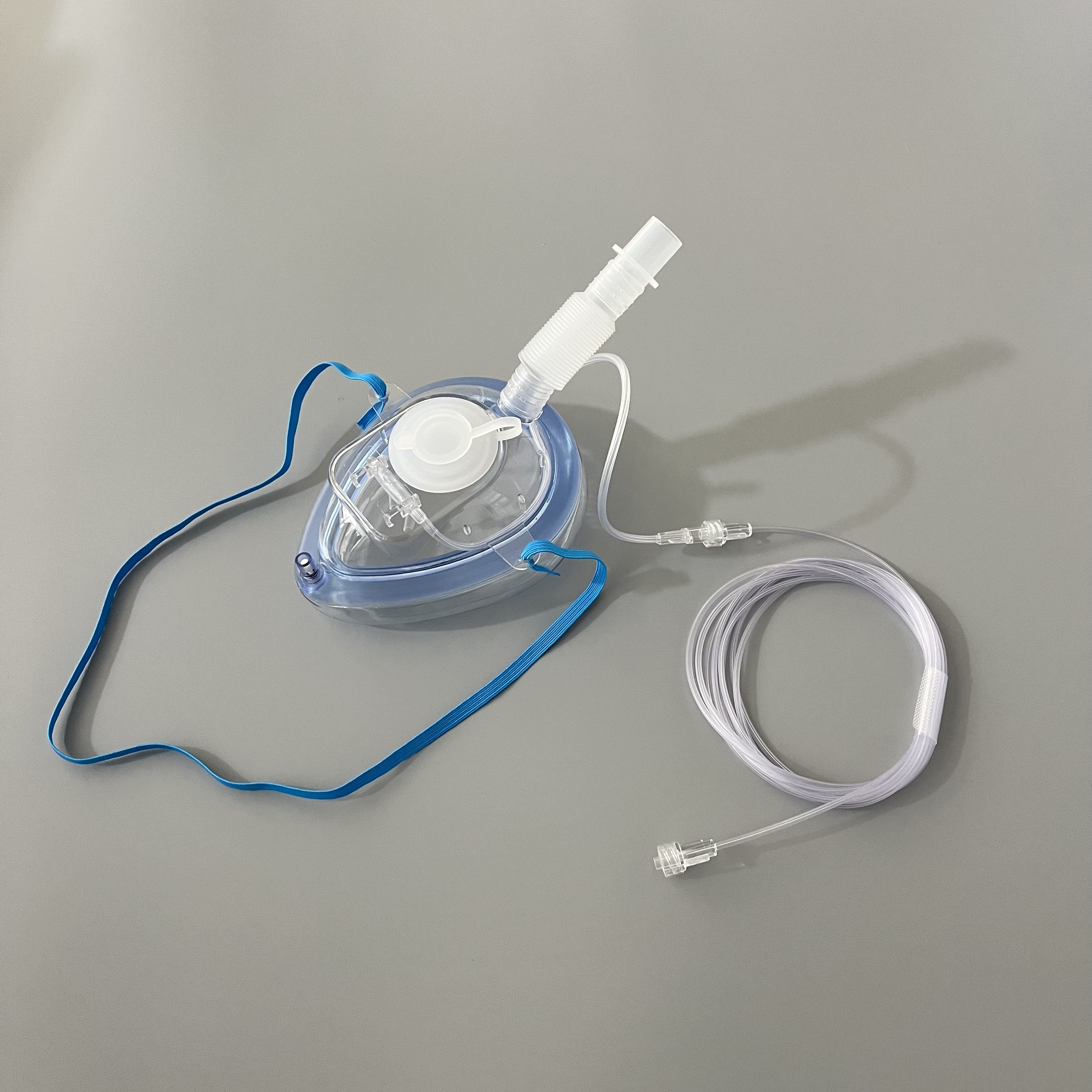

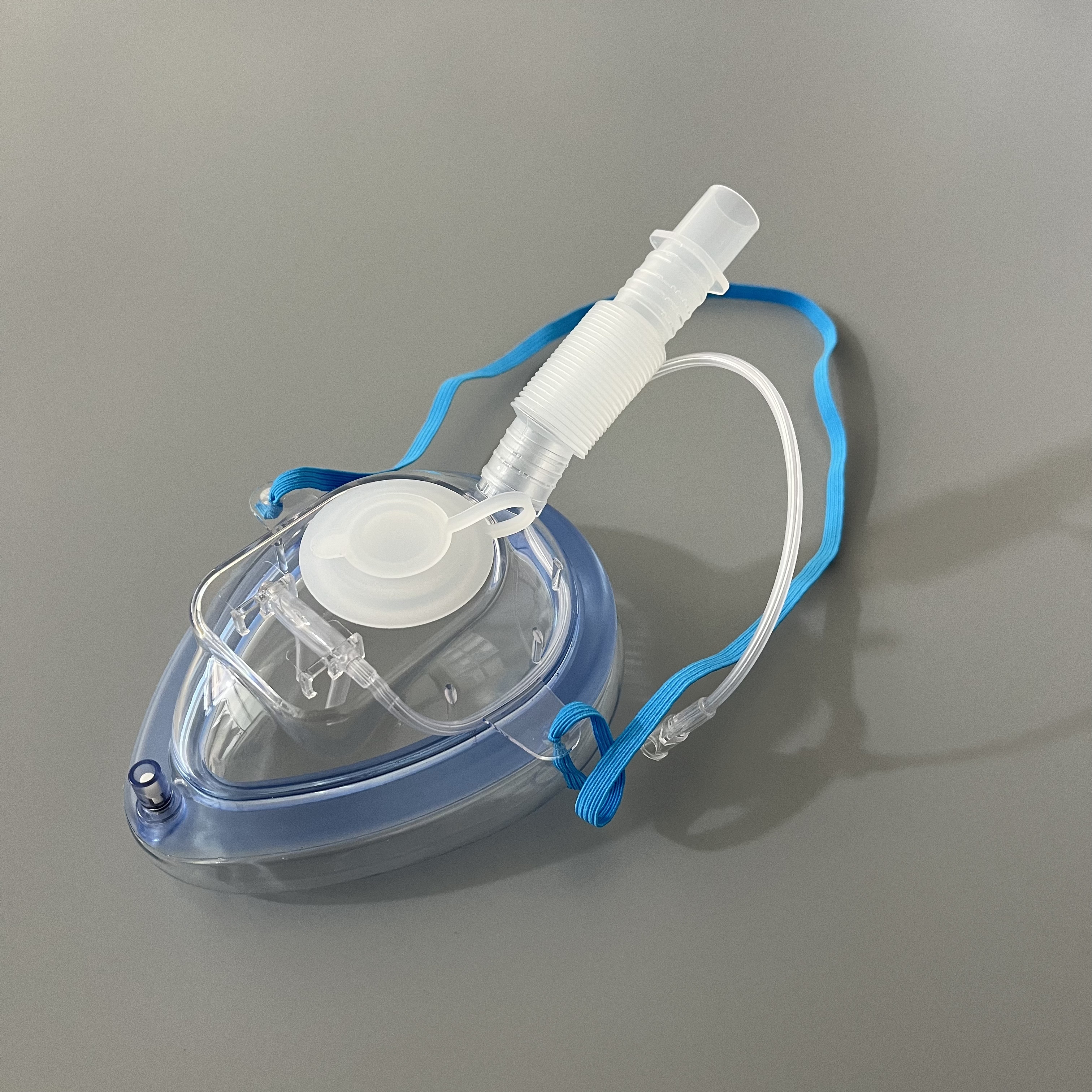

Endscopy CO2/O2 Mask

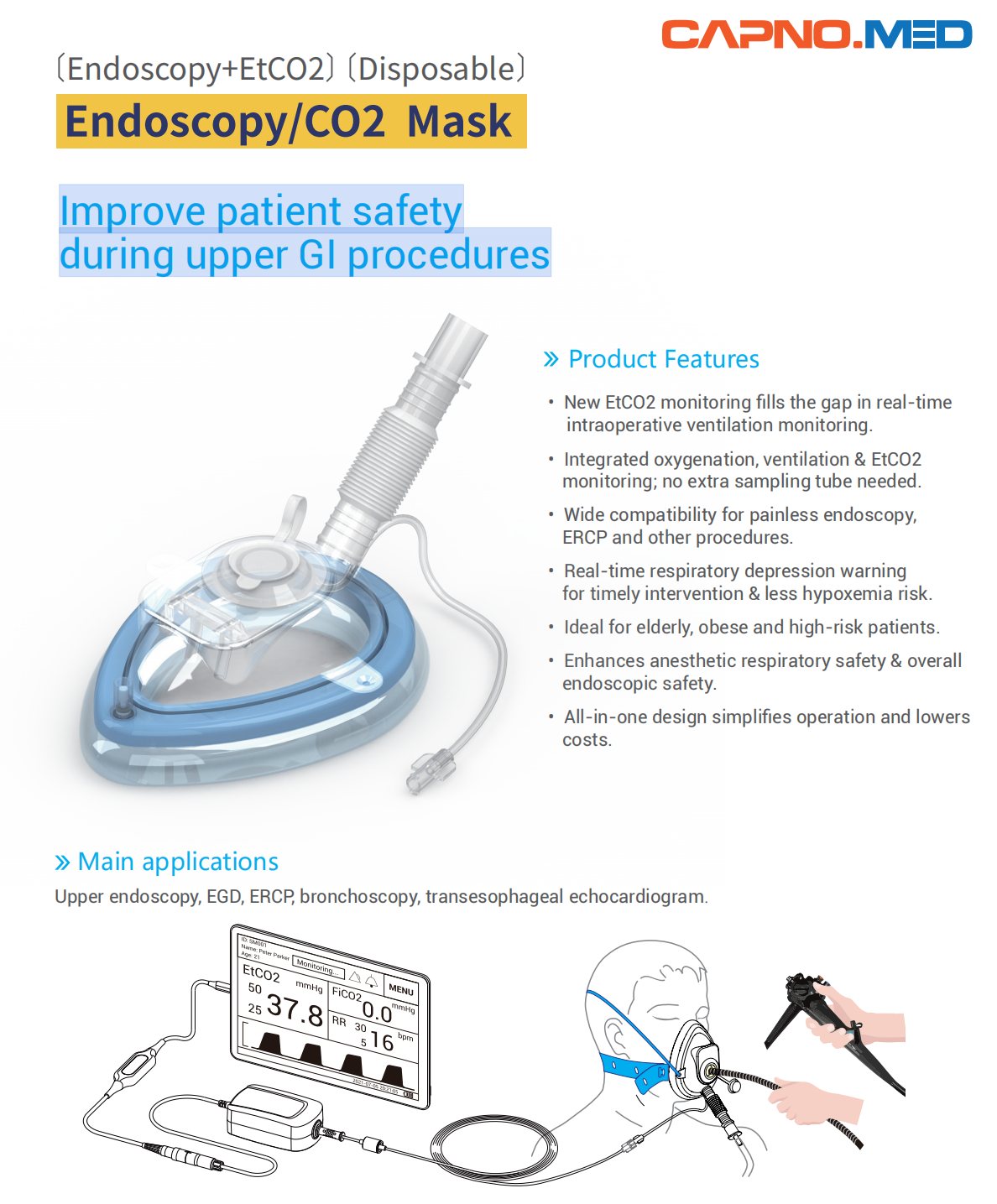

Product Features:

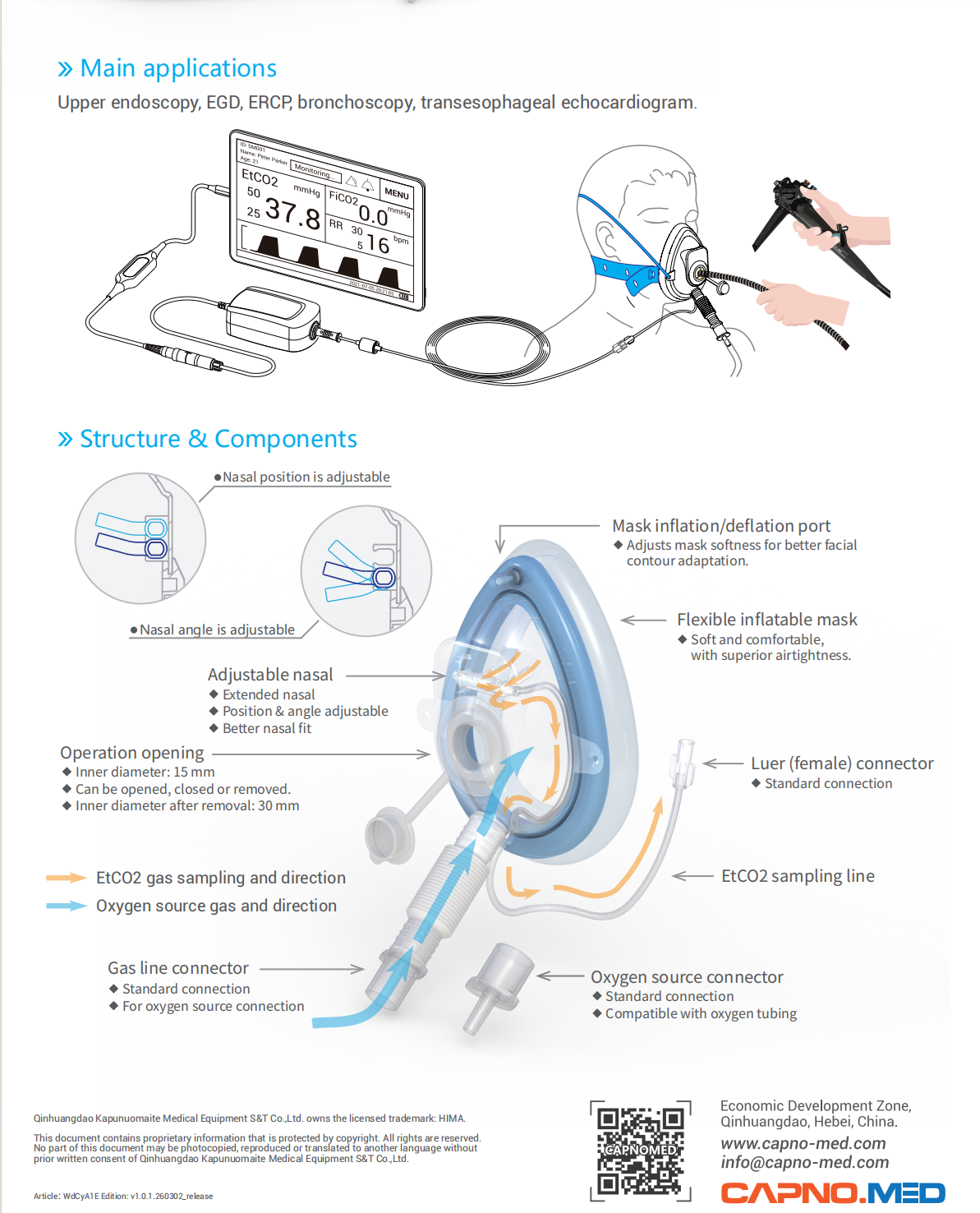

  1. New EtCO2 Monitoring fills the gap in real-time intraoperative ventilation monitoring

  2. Integrated oxygenation, Ventilation & EtCO2 Monitoring; no extra  sampling tube needed

  3. Wide compatibility for painless endoscopy, ERCP and other procedures

  4. Real-time respiratory depression warning for timely intervention &  less hypoxemia risk

  5. Ideal for elderly, obese and high-risk patients

  6. Enhances anesthetic respiratory saftety &overall endoscopic safety

  7. All-in-one design simplifies operation and lowers costs


Get Price Download
Specification Details

Specification of Endscopy CO2/O2 Mask

ProjectTechnical Parameters
Principle of OperationCollect Tidal samples from the nasal for analysis by CO2 sensors
Product TypeAccessories(Used with EtCO2 Sensor).
Working TypeSidestream
Initialization TimeImmediately after accessing the gas path.
Patient TypeAdult & Pediatric.
Patient Use StyleSingle-patient-use.
TemperatureOperating: 0 to 40°C; Storage: -40 to 70°C; Transport: -40 to 70°C.
HumidityOperating: 10 to 90% RH, non-condensing; Storage: 10 to 90% RH, non-condensing. Transport: 10 to 90% RH, non-condensing.
Atmospheric PressureOperating: 400-800 mmHg; Storage: 400-800 mmHg; Transport: 400-800 mmHg.
Sterile OR Non-SterileNon-Sterile.
Latex FreeNot manufactured with natural rubber latex
Cable Length2.5m
Service LifeShort term: 24 hours (Gas flow:75ml/min).
Long term: 72 hours (Gas flow:75ml/min).
O2Yes
Patient SideOxygen & nasal cannula Connector
Device SideLuer Connector
