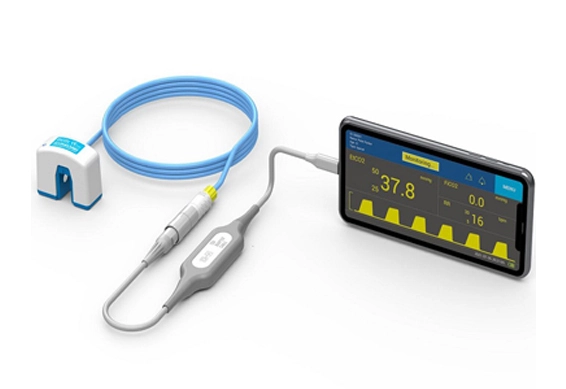

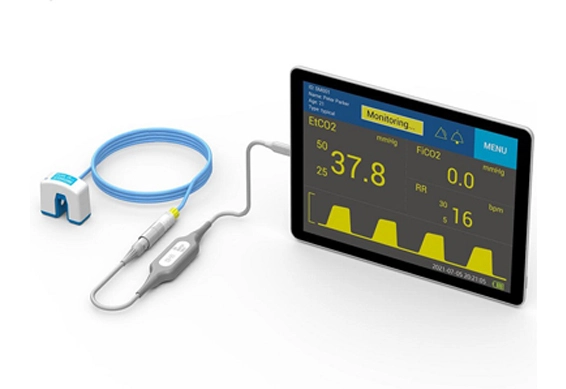

Mainstream Capngoraph Monitoring System

  • Simple structure and strong stability.

  • Plug and play, support hot swap.

  • Using imported components, the detection accuracy is high.

  • Easily accessible display (phone or tablet)

Get Price
Specification Details

Specification of Mainstream Capngoraph Monitoring System

ProjectParameter Description

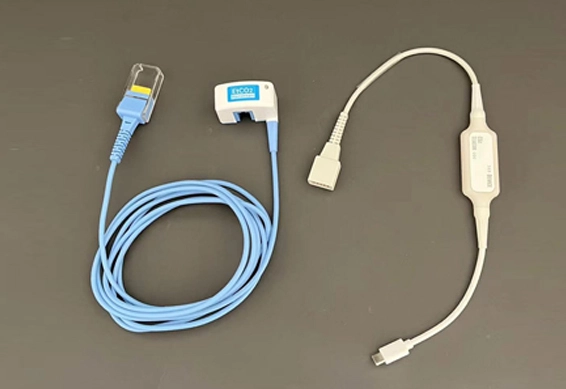

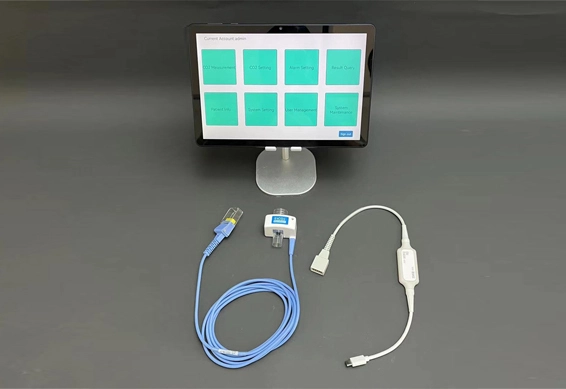

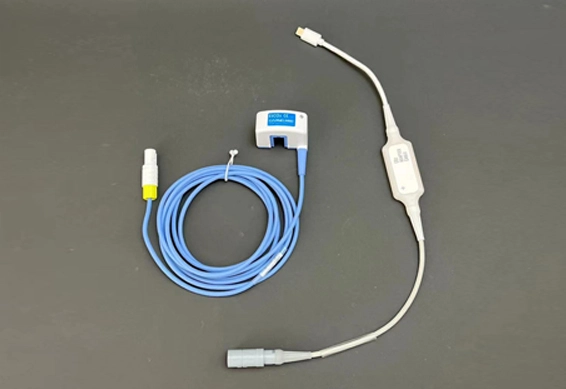

compositionMainstream EtCO2 Sensor，Adapter Cable，Software
Initialization TimeCapnogram displayed in less than 3 seconds，full specifications within 3 minutes(At 25°C)
CO2 Measurement Range0 - 114 mmHg; 0 - 15 %; 0 - 15.2 kPa
CO2 Rise TimeRise Time Less than 80 ms
CO2 Resolution0.1mmHg 0 to 38 mmHg.
0.25 mmHg 39 to 114mmHg.
CO2 Accuracy0 - 40mmHg ±2 mmHg.
41 - 76mmHg ±5% of reading.
77 - 114 mmHg ±8% of reading.
Above 80 breaths per minute ±12% of reading.
* Note: Gas temperature at 25°C.
CO2 StabilityShort term drift: Drift over four hours shall not exceed 1 mmHg maximum.
Long term drift: Accuracy specification will be maintained over a 120-hour period.
Sampling Frequency100Hz。
Respiration Rate Range3 to 150 breaths per minute.
Respiration Rate Accuracy±1 breath.
TemperatureOperating: 0 to 40°C; Storage: -40 to 70°C; Transport: -40 to 70°C.
HumidityOperating: 10 to 90% RH, non-condensing; Storage: 10 to 90% RH, non-condensing. Transport: 10 to 90% RH, non-condensing.
Atmospheric PressureOperating: 400-800 mmHg; Storage: 400-800 mmHg; Transport: 400-800 mmHg.
Power Supply5VDC土5%。
Data interfaceType-C
System requirementsAndroid


Details of Mainstream Capngoraph Monitoring System

Quick Details of Mainstream Capngoraph Monitoring System

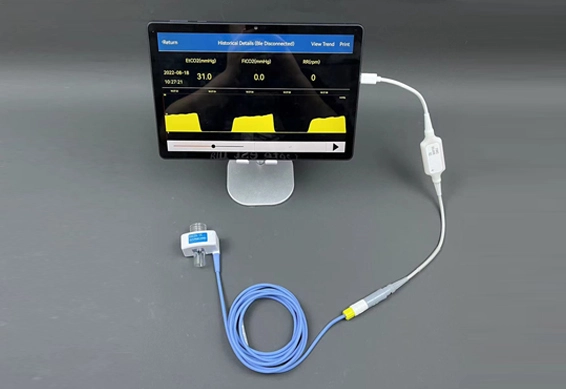

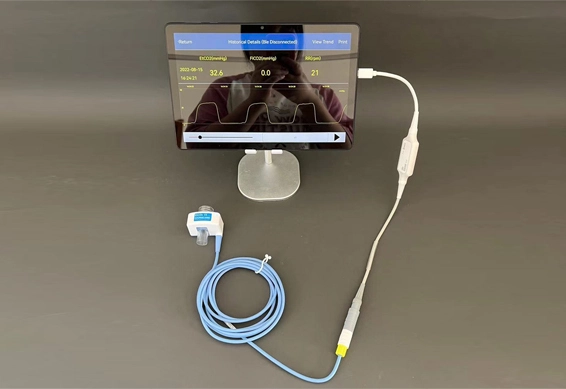

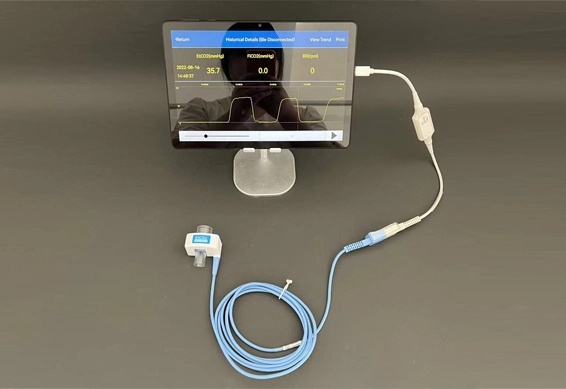

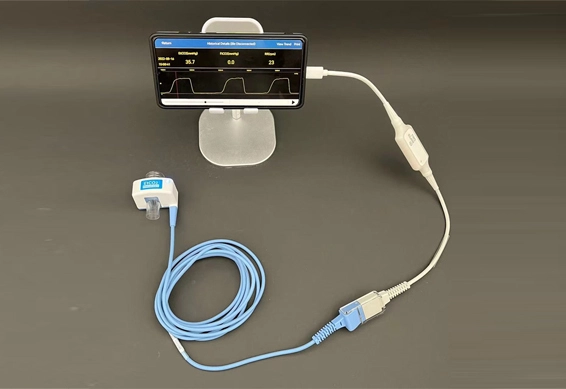

It is compatible with mainstream EtCO2 sensors and can be connected to tablets and smartphones with Type-C interfaces. It can monitor the patient’s EtCO2 waveform, EtCO2 value, and respiratory rate (RR) in real time. The real-time monitoring data can be recorded and exported as a basis for diagnosis. We also provide related accessories and consumables.
