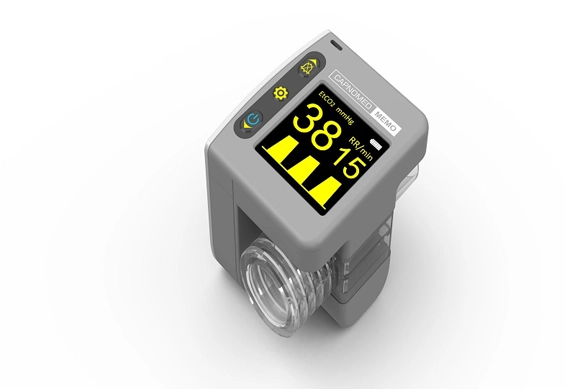

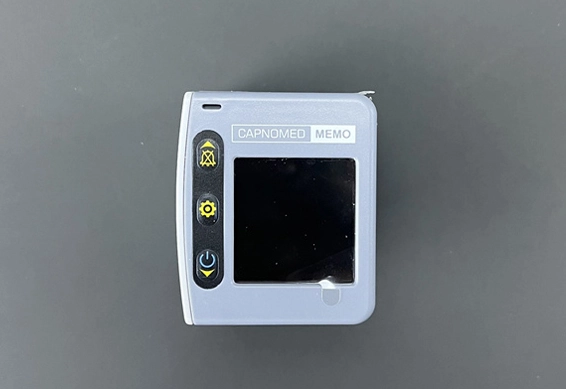

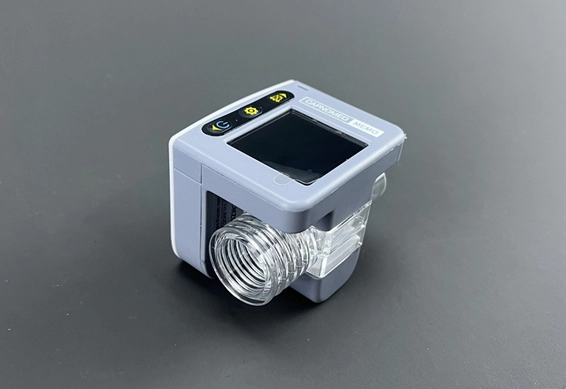

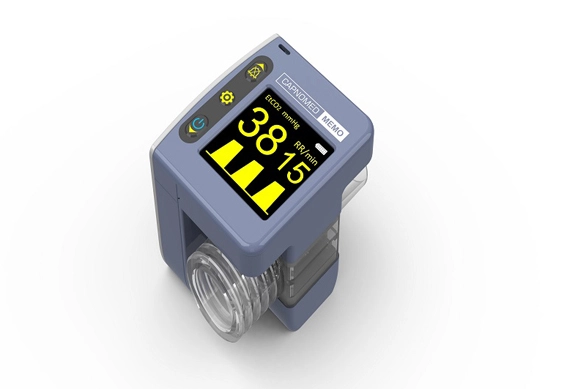

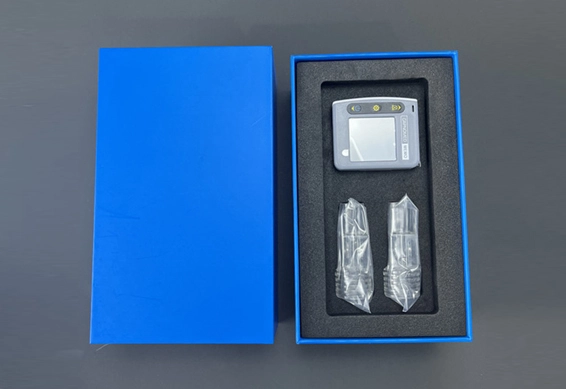

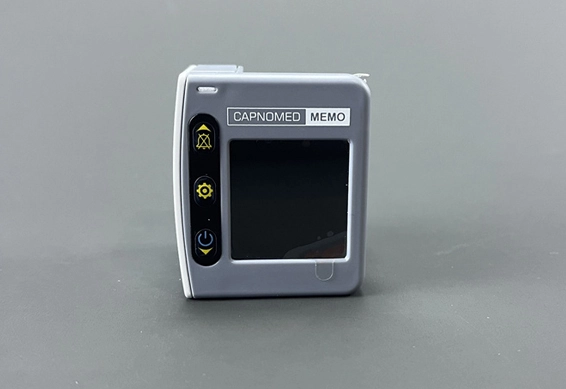

MEMO Portable Capnography

Lightweight and portable, work independently;
Lower power consumption, longer working time;
Using imported electronic components, it has the advantages of accurate numerical value and stable waveform.

Get Price

Specification Details

Specification of MEMO Portable Capnography

Project	Parameter Description
Measuring Principle	2 channel NDIR type gas analyzer, No moving parts.
Minimum Sampling Flow	1 L/min
CO2 Range	0-99 mmHg, 0-99 kPa, 0-13 %
CO2 Resolution	1 mmHg, 0.1 kPa or 0.1 %
CO2 Accuracy	0～40 mmHg ±2 mmHg, 41～99 mmHg ±8 % of readings.
	0～5.3 % ±0.3 %, 5.4～9.9 % ±8 % of readings.
	0～5.3 kPa ±0.3 kPa, 5.4～9.9 kPa ±8 % of readings.
Drift of CO2 Measurement Accuracy	Short drift: Less than 1 mmHg offset in 4 hours.
Drift of CO2 Measurement Accuracy	Long drift: Meet measurement accuracy requirements within 120 hours.
Respiratory Rate	0～150 bpm
Respiratory Rate Accuracy	±1 bpm
Adult/Pediatric Airway Adapter	Dead space 6 ml, Flow resistance < 0.3 cm H2O (@ 30 LPM)
Neonatal Airway Adapter	Dead space 1 ml, Flow resistance < 1.3 cm H2O (@ 10 LPM)
Gas Compensation	128*128 pixel 1.44 inch TFT color display
Power Supply	51mm43mm45mm
Temperature	Operating: 0 to 40°C; Storage: -40 to 70°C; Transport: -40 to 70°C.
Humidity	Operating: 10 to 90% RH, non-condensing; Storage: 10 to 90% RH, non-condensing. Transport: 10 to 90% RH, non-condensing.
Atmospheric Pressure	Operating: 400-800 mmHg; Storage: 400-800 mmHg; Transport: 400-800 mmHg.
Water Resistance	IP33 - Splash-proof - Sensor only.

Details of MEMO Portable Capnography

Quick Details of MEMO Portable Capnography

Real-time monitoring of the patient’s end-tidal carbon dioxide respiratory waveform (Capnograph), end-tidal carbon dioxide concentration (EtCO2), and respiratory rate (RR). We offer two models of airway adapters, for adults/children (CSM01A) and infants (CSM01B), to suit different types of patients.
