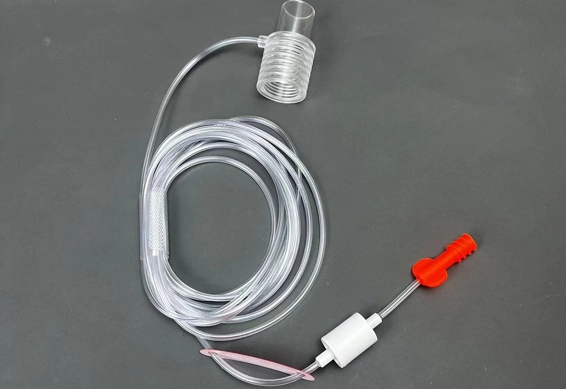

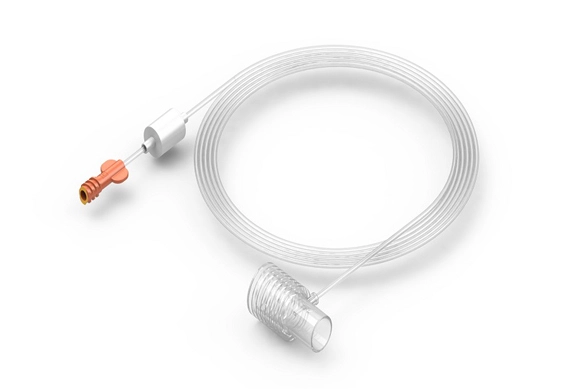

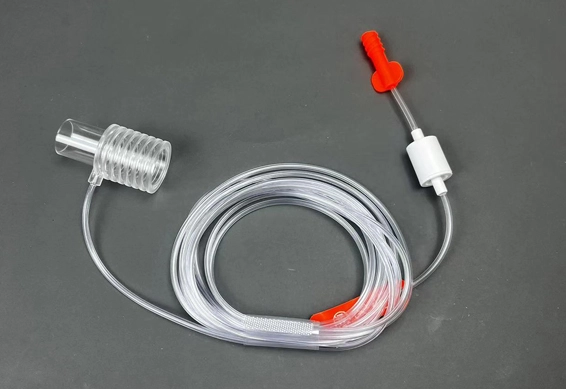

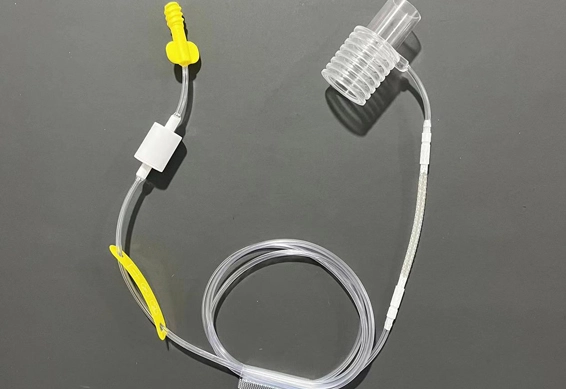

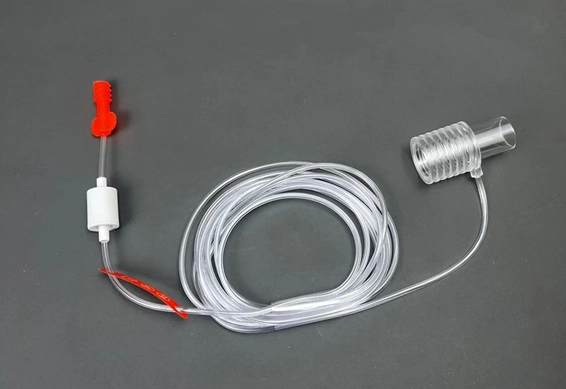

O-T Sampling Line

Using medical grade materials, safe and reliable;
Stable connection, good airtightness, plug and play;
The inner surface is smooth, the gas resistance is small, and the gas delivery is stable;
Nose soft silicone material, comfortable to wear.

Get Price

Specification Details

Specification of O-T Sampling Line

Project	Specifications
Principle of Operation	Collect Tidal samples for analysis by CO2 sensors
Product Type	Accessories(Used with EtCO2 Sensor).
Working Type	Mainstream
Initialization Time	Immediately after accessing the gas path.
Patient Type	Adult & Pediatric.
Patient Use Style	Single-patient-use.
Temperature	Operating: 0 to 40°C; Storage: -40 to 70°C; Transport: -40 to 70°C.
Humidity	Operating: 10 to 90% RH, non-condensing; Storage: 10 to 90% RH, non-condensing. Transport: 10 to 90% RH, non-condensing.
Atmospheric Pressure	Operating: 400-800 mmHg; Storage: 400-800 mmHg; Transport: 400-800 mmHg.
Sterile OR Non-Sterile	Non-Sterile.
Latex Free	Not manufactured with natural rubber latex
Cable Length	2.5m
Service Life	Short term：24 hours (Gas flow:75ml/min).
Service Life	Long term：72 hours (Gas flow:75ml/min).
Patient Side	T-type Connector
Device Side	O-type Connector

Details of O-T Sampling Line

Quick Details of O-T Sampling Line

It connects to the gas path and collects tidal gas, compatible with O series EtCO2 sensors. It is a disposable consumable. We offer a variety of specifications and models to suit different devices and types of patients.
