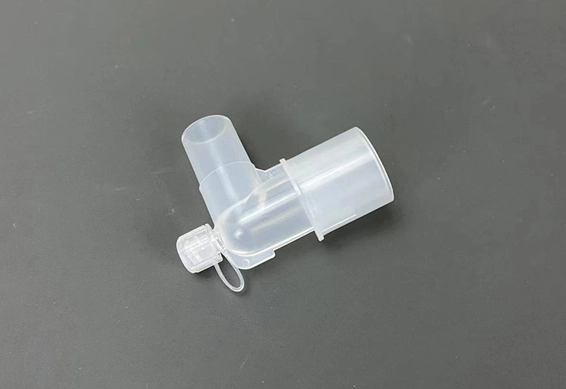

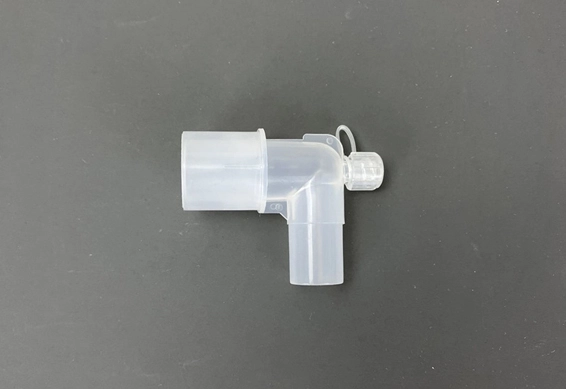

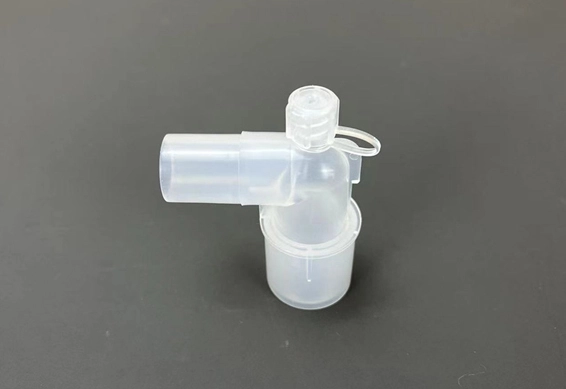

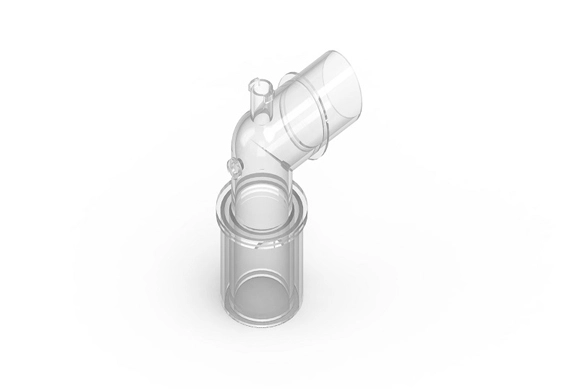

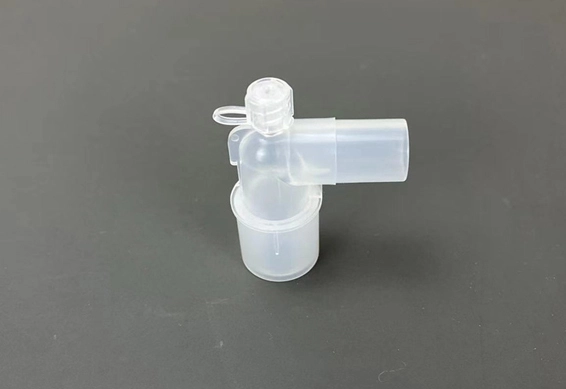

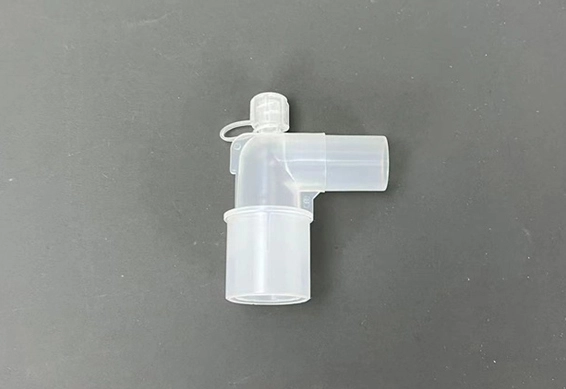

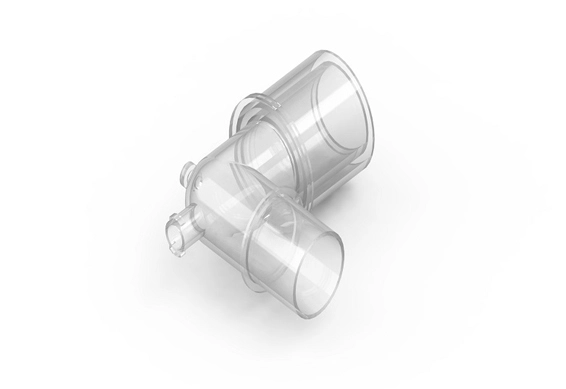

L-Type EtCO2 Connector

  • Exquisite design, small dead space;

  • Precise size, tight connection;

  • Made of medical grade material, safe and reliable;

  • Strong compatibility.

Get Price
Specification Details

Specification of L-Type EtCO2 Connector

ProjectTechnical Parameters
Principle of OperationConnect to the air circuit so that the CO2 sensor detects moisture passing through the air adapter.
Product TypeAccessories(Used with EtCO2 Sensor).
Working TypeSidestream
Initialization TimeImmediately after accessing the gas path.
Patient TypeAdult & Pediatric.
Patient Use StyleSingle-patient-use.
Service LifeSingle patient use only (Or continuous use for more than 6 hours).
TemperatureOperating: 0 to 40°C; Storage: -40 to 70°C; Transport: -40 to 70°C.
HumidityOperating: 10 to 90% RH, non-condensing; Storage: 10 to 90% RH, non-condensing. Transport: 10 to 90% RH, non-condensing.
Atmospheric PressureOperating: 400-800 mmHg; Storage: 400-800 mmHg; Transport: 400-800 mmHg.
Sterile OR Non-SterileNon-Sterile.
Latex FreeNot manufactured with natural rubber latex
MaterialPVC


Details of L-Type EtCO2 Connector

Quick Details of L-Type EtCO2 Connector

The ‘L-shaped connector’ is adapted to the ‘sampling tube’ for gas pathway integration, enabling the sidestream EtCO2 sensor to accurately and swiftly collect end-tidal carbon dioxide values. This is a disposable consumable.
